smooth v4.3.0 in R: what’s new and what’s next?

Sticker of the smooth package for R

Good news! The smooth package v4.3.0 is now on CRAN. And there are several things worth mentioning, so I have written this post.

New default initialisation mechanism

Since the beginning of the package, the smooth functions supported three ways for initialising the state vector (the vector that includes level, trend, seasonal indices): optimisation, backcasting and values provided by user. The former has been considered the standard way of estimating ETS, while the backcasting was originally proposed by Box & Jenkins (1970) and was only implemented in the smooth (at least, I haven’t seen it anywhere else). The main advantage of the latter is in computational time, because you do not need to estimate every single value of the state vector. The new ADAM core that I developed during COVID lockdown, had some improvements for the backcasting, and I noticed that adam() produced more accurate forecasts with it than with the optimisation. But I needed more testing, so I have not changed anything back then.

However, my recent work with Kandrika Pritularga on capturing uncertainty in ETS, have demonstrated that backcasting solves some fundamental problems with the variance of states – the optimisation cannot handle so many parameters, and asymptotic properties of ETS do not make sense in that case (we’ll release the paper as soon as we finish the experiments). So, with this evidence on hands and additional tests, I have made a decision to switch from the optimisation to backcasting as the default initialisation mechanism for all the smooth functions.

The final users should not feel much difference, but it should work faster now and (hopefully) more accurately. If this is not the case, please get in touch or file an issue on github.

Also, rest assured the initial="optimal" is available and will stay available as an option in all the smooth functions, so, you can always switch back to it if you don’t like backcasting.

Finally, I have introduce a new initialisation mechanism called “two-stage”, the idea of which is to apply backcasting first and then to optimise the obtained state values. It is slower, but is supposed to be better than the standard optimisation.

ADAM core

Every single function in the smooth package now uses ADAM C++ core, and the old core will be discontinued starting from v4.5.0 of the package. This applies to the functions: es(), ssarima(), msarima(), ces(), gum(), sma(). There are now the legacy versions of these functions in the package with the prefix “_old” (e.g. es_old()), which will be removed in the smooth v4.5.0. The new engine also helped ssarima(), which now became slightly more accurate than before. Unfortunately, there are still some issues with the initialisation of the seasonal ssarima(), which I have failed to solve completely. But I hope that over time this will be resolved as well.

smooth performance update

I have applied all the smooth functions together with the ets() and auto.arima() from the forecast package to the M1, M3 and Tourism competition data and have measured their performances in terms of RMSSE, scaled Cumulative Error (sCE) and computational time. I used the following R code for that:

Long and boring code in R
library(Mcomp)
library(Tcomp)
library(forecast)
library(smooth)
# I work on Linux and use doMC. Substitute this with doParallel if you use Windows
library(doMC)
registerDoMC(detectCores())
# Create a small but neat function that will return a vector of error measures
errorMeasuresFunction <- function(object, holdout, insample){
holdout <- as.vector(holdout);
insample <- as.vector(insample);
return(c(measures(holdout, object$mean, insample),
mean(holdout < object$upper & holdout > object$lower),
mean(object$upper-object$lower)/mean(insample),
pinball(holdout, object$upper, 0.975)/mean(insample),
pinball(holdout, object$lower, 0.025)/mean(insample),
sMIS(holdout, object$lower, object$upper, mean(insample),0.95),
object$timeElapsed))
}
# Datasets to use
datasets <- c(M1,M3,tourism)
datasetLength <- length(datasets)
# Types of models to try
methodsNames <- c("ETS", "Auto ARIMA",
"ADAM ETS Back", "ADAM ETS Opt", "ADAM ETS Two",
"ES Back", "ES Opt", "ES Two",
"ADAM ARIMA Back", "ADAM ARIMA Opt", "ADAM ARIMA Two",
"MSARIMA Back", "MSARIMA Opt", "MSARIMA Two",
"SSARIMA Back", "SSARIMA Opt", "SSARIMA Two",
"CES Back", "CES Opt", "CES Two",
"GUM Back", "GUM Opt", "GUM Two");
methodsNumber <- length(methodsNames);
test <- adam(datasets[[125]]);
testResults20250603 <- array(NA,c(methodsNumber,datasetLength,length(test$accuracy)+6),
dimnames=list(methodsNames, NULL,
c(names(test$accuracy),
"Coverage","Range",
"pinballUpper","pinballLower","sMIS",
"Time")));
#### ETS from forecast package ####
j <- 1;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="forecast") %dopar% {
startTime <- Sys.time()
test <- ets(datasets[[i]]$x);
testForecast <- forecast(test, h=datasets[[i]]$h, level=95);
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### AUTOARIMA ####
j <- 2;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="forecast") %dopar% {
startTime <- Sys.time()
test <- auto.arima(datasets[[i]]$x);
testForecast <- forecast(test, h=datasets[[i]]$h, level=95);
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ADAM ETS Backcasting ####
j <- 3;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- adam(datasets[[i]],"ZXZ", initial="back");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="pred");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ADAM ETS Optimal ####
j <- 4;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- adam(datasets[[i]],"ZXZ", initial="opt");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="pred");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ADAM ETS Two-stage ####
j <- 5;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- adam(datasets[[i]],"ZXZ", initial="two");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="pred");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ES Backcasting ####
j <- 6;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- es(datasets[[i]],"ZXZ", initial="back");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ES Optimal ####
j <- 7;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- es(datasets[[i]],"ZXZ", initial="opt");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ES Two-stage ####
j <- 8;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- es(datasets[[i]],"ZXZ", initial="two");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ADAM ARIMA Backcasting ####
j <- 9;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.adam(datasets[[i]], "NNN", initial="back", distribution=c("dnorm"));
testForecast <- forecast(test, h=datasets[[i]]$h, interval="pred");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ADAM ARIMA Optimal ####
j <- 10;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.adam(datasets[[i]], "NNN", initial="opt", distribution=c("dnorm"));
testForecast <- forecast(test, h=datasets[[i]]$h, interval="pred");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### ADAM ARIMA Two-stage ####
j <- 11;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.adam(datasets[[i]], "NNN", initial="two", distribution=c("dnorm"));
testForecast <- forecast(test, h=datasets[[i]]$h, interval="pred");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### MSARIMA Backcasting ####
j <- 12;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.msarima(datasets[[i]], initial="back");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### MSARIMA Optimal ####
j <- 13;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.msarima(datasets[[i]], initial="opt");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### MSARIMA Two-stage ####
j <- 14;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.msarima(datasets[[i]], initial="two");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### SSARIMA Backcasting ####
j <- 15;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.ssarima(datasets[[i]], initial="back");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### SSARIMA Optimal ####
j <- 16;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="forecast") %dopar% {
startTime <- Sys.time()
test <- auto.ssarima(datasets[[i]], initial="opt");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### SSARIMA Two-stage ####
j <- 17;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="forecast") %dopar% {
startTime <- Sys.time()
test <- auto.ssarima(datasets[[i]], initial="two");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### CES Backcasting ####
j <- 18;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.ces(datasets[[i]], initial="back");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### CES Optimal ####
j <- 19;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.ces(datasets[[i]], initial="opt");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### CES Two-stage ####
j <- 20;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.ces(datasets[[i]], initial="two");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### GUM Backcasting ####
j <- 21;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.gum(datasets[[i]], initial="back");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### GUM Optimal ####
j <- 22;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.gum(datasets[[i]], initial="opt");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);
#### GUM Two-stage ####
j <- 23;
result <- foreach(i=1:datasetLength, .combine="cbind", .packages="smooth") %dopar% {
startTime <- Sys.time()
test <- auto.gum(datasets[[i]], initial="two");
testForecast <- forecast(test, h=datasets[[i]]$h, interval="parametric");
testForecast$timeElapsed <- Sys.time() - startTime;
return(errorMeasuresFunction(testForecast, datasets[[i]]$xx, datasets[[i]]$x));
}
testResults20250603[j,,] <- t(result);

# Summary of results
cbind(t(apply(testResults20250603[c(1:8,12:23),,"RMSSE"],1,quantile)),
mean=apply(testResults20250603[c(1:8,12:23),,"RMSSE"],1,mean),
sCE=apply(testResults20250603[c(1:8,12:23),,"sCE"],1,mean),
Time=apply(testResults20250603[c(1:8,12:23),,"Time"],1,mean)) |> round(3)

The table below shows the distribution of RMSSE, the mean sCE and mean Time. The boldface shows the best performing model.

                    min   Q1  median   Q3     max  mean    sCE  Time
ETS                0.024 0.677 1.181 2.376  51.616 1.970  0.299 0.385
Auto ARIMA         0.025 0.680 1.179 2.358  51.616 1.986  0.124 1.467
ADAM ETS Back      0.015 0.666 1.175 2.276  51.616 1.921  0.470 0.218
ADAM ETS Opt       0.020 0.666 1.190 2.311  51.616 1.937  0.299 0.432
ADAM ETS Two       0.025 0.666 1.179 2.330  51.616 1.951  0.330 0.579
ES Back            0.015 0.672 1.174 2.284  51.616 1.921  0.464 0.219
ES Opt             0.020 0.672 1.186 2.316  51.616 1.943  0.302 0.497
ES Two             0.024 0.668 1.181 2.346  51.616 1.952  0.346 0.562
MSARIMA Back       0.025 0.710 1.188 2.383  51.616 2.028  0.067 0.780
MSARIMA Opt        0.025 0.724 1.242 2.489  51.616 2.083  0.088 1.905
MSARIMA Two        0.025 0.718 1.250 2.485  51.906 2.075  0.083 2.431
SSARIMA Back       0.045 0.738 1.248 2.383  51.616 2.063  0.167 1.747
SSARIMA Opt        0.025 0.774 1.292 2.413  51.616 2.040  0.178 7.324
SSARIMA Two        0.025 0.742 1.241 2.414  51.616 2.027  0.183 8.096
CES Back           0.046 0.695 1.189 2.355  51.342 1.981  0.125 0.185
CES Opt            0.030 0.698 1.218 2.327  49.480 2.001 -0.135 0.834
CES Two            0.025 0.696 1.207 2.343  51.242 1.993 -0.078 1.006
GUM Back           0.046 0.707 1.215 2.399  51.134 2.049 -0.285 3.575
GUM Opt            0.026 0.795 1.381 2.717 240.143 2.932 -0.549 4.668
GUM Two            0.026 0.803 1.406 2.826 240.143 3.041 -0.593 4.703

Several notes:

  • ES is a wrapper of ADAM ETS. The main difference between them is that the former uses the Gamma distribution for the multiplicative error models, while the latter relies on the Normal one.
  • MSARIMA is a wrapper for ADAM ARIMA, which is why I don't report the latter in the results.

One thing you can notice from the output above, is that the models with backcasting consistently produce more accurate forecasts across all measures. I explain this with the idea that they tend not to overfit the data as much as the optimal initialisation does.

To see the stochastic dominance of the forecasting models, I conducted the modification of the MCB/Nemenyi test, explained in this post:

par(mar=c(10,3,4,1))
greybox::rmcb(t(testResults20250603[c(1:8,12:23),,"RMSSE"]), outplot="mcb")

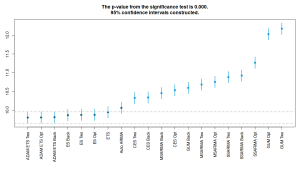

Nemenyi test for the smooth functions

Nemenyi test for the smooth functions

The image shows mean ranks for each of the models and whether the performance of those is significant on the 5% level or not. It is apparent that ADAM ETS has the lowest rank, no matter what the initialisation is used, but its performance does not differ significantly from the es(), ets() and auto.arima(). Also, auto.arima() significantly outperforms msarima() and ssarima() on this data, which could be due to their initialisation. Still, backcasting seems to help all the functions in terms of accuracy in comparison with the "optimal" and "two-stage" initials.

What's next?

I am now working on a modified formulation for ETS, which should fix some issues with the multiplicative trend and make the ETS safer. This is based on Section 6.6 of the online version of the ADAM monograph (it is not in the printed version). I am not sure whether this will improve the accuracy further, but I hope that it will make some of the ETS models more resilient than they are right now. I specifically need the multiplicative trend model, which sometimes behave like crazy due to its formulation.

I also plan to translate all the simulation functions to the ADAM core. This applies to sim.es(), sim.ssarima(), sim.gum() and sim.ces(). Currently they rely on the older one, and I want to get rid of it. Having said that, the method simulate() applied to the new smooth functions already uses the new core. It just lacks the flexibility that the other functions have.

Furthermore, I want to rewrite the oes() function and substitute it with oadam(), which would use a better engine, supporting more features, such as multiple frequencies and ARIMA for the occurrence. This is a lot of work, and I probably will need help with that.

Finally, Filotas Theodosiou, Leonidas Tsaprounis, and I are working on the translation of the R code of the smooth to Python. You can read a bit more about this project here. There are several other people who decided to help us, but the progress so far has been a bit slow, because of the code translation. If you want to help, please get in touch.

Leave a Reply
